Description

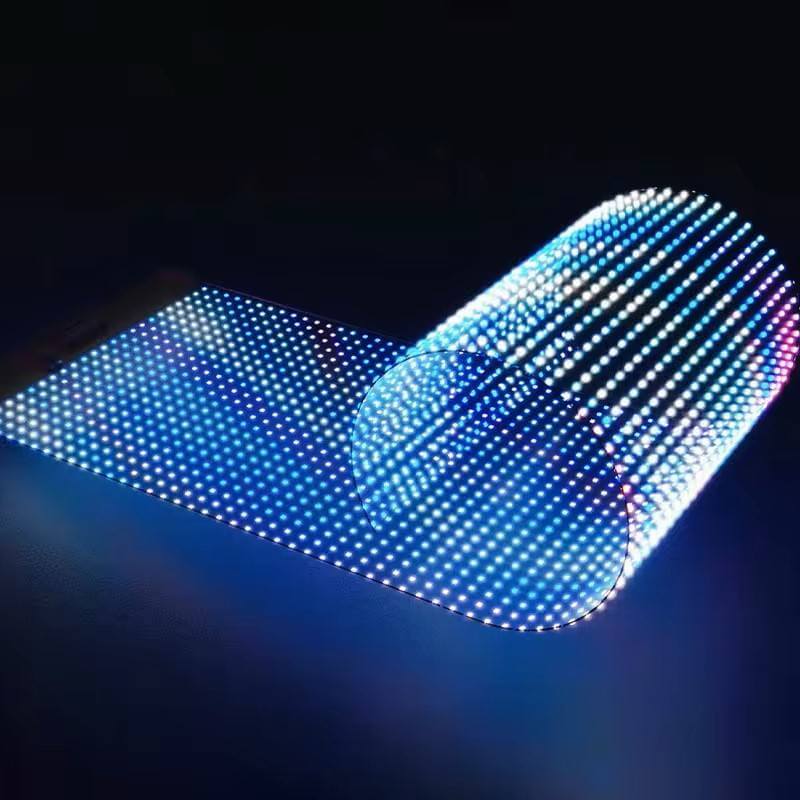

3D Led Flexible Led Transparent Film Display Screen Transparent Led Video Wall For Glass Window Advertising

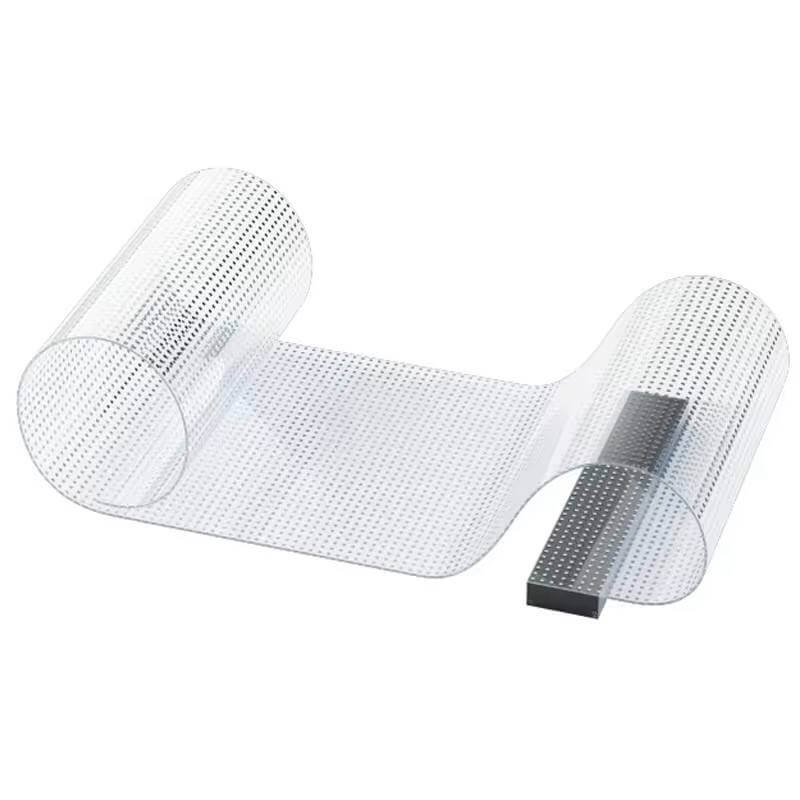

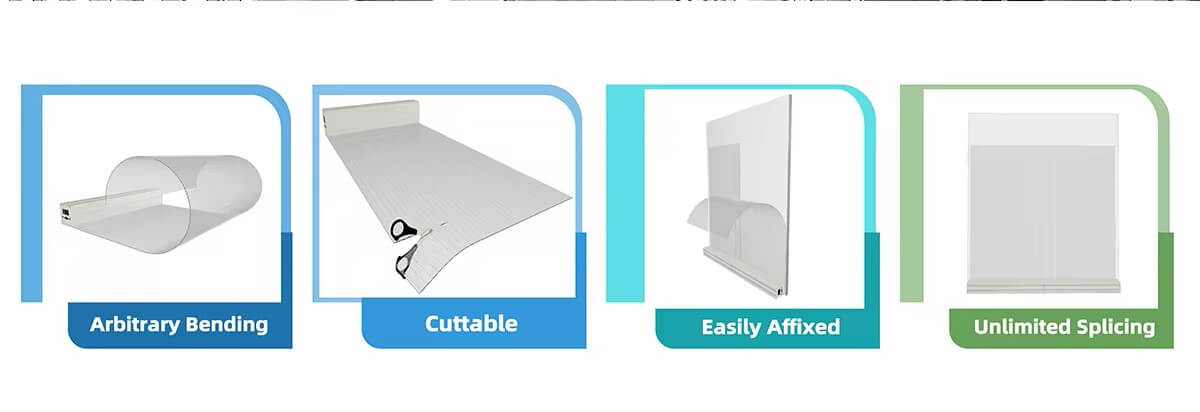

It breaks the traditional transparent screen standard frame concept, the product is more flexible, can be directly pasted on the inside of the glass, with the size of the glass arbitrary cut, do not destroy the original structure of the building, does not affect the indoor lighting.
|
Pixel spacing
|
4-8mm
|
|

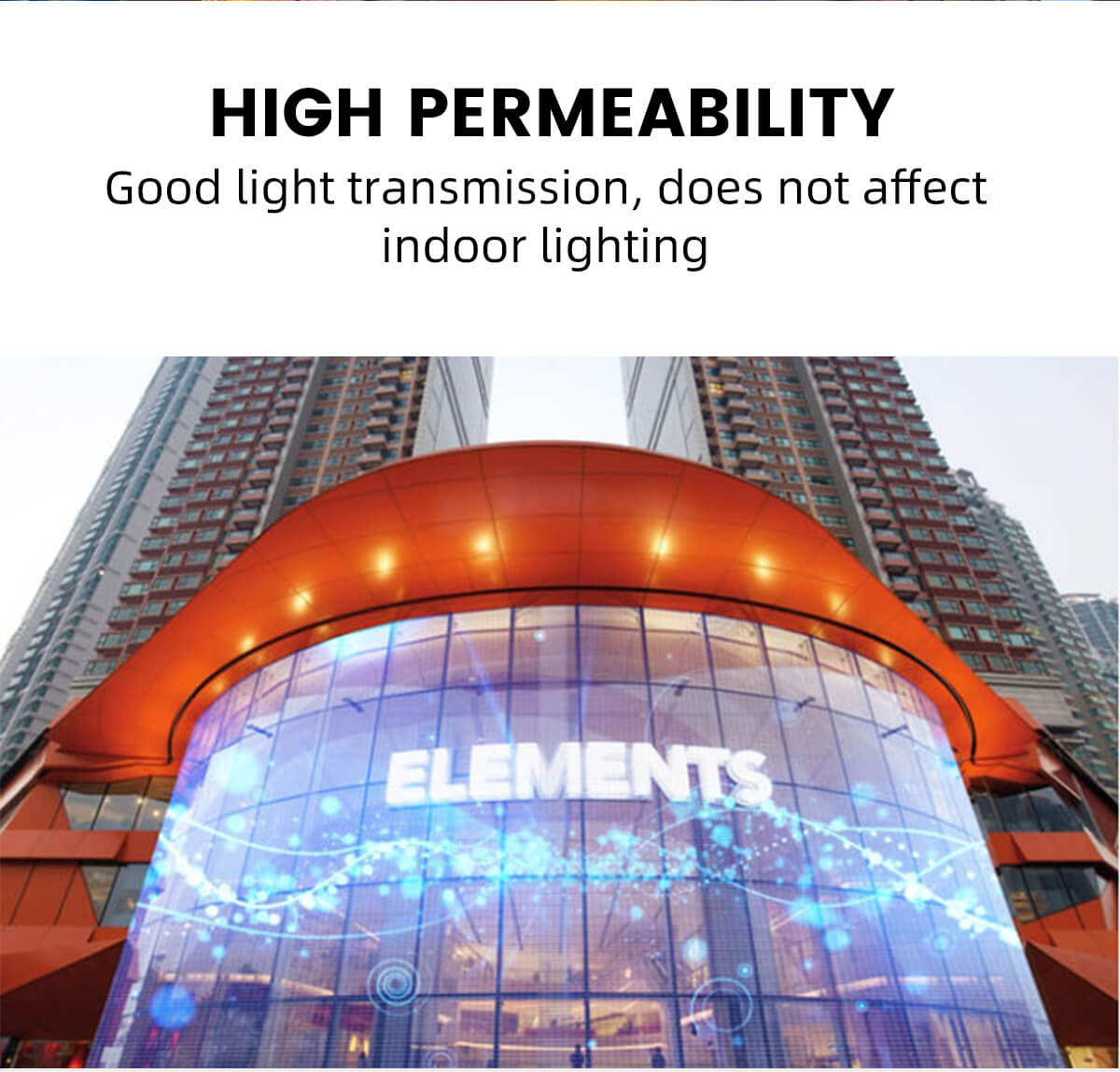

Permeability
|
90%
|
|
SMD
|
FMD2121
|
|
Density(dot/m²）
|
31250dot/㎡
|
|
Unit size
|
can be customized
|
|
BBrightness
|
≥3000cd/㎡
|
|
Optimal viewing distance
|
4-100m
|
|
Horizontal viewing angle
|
≥130°
|
|
Vertical viewing angle
|
≥110°
|
Technical-Parameters:
| Model | FL-TLED-2.5 | FL-TLED-3.9 | FL-TLED-6.25 | FL-TLED10 |
| Pixel Pitch (mm) (H/V) | P2.5 / P2.5 | P3.91 / P3.91 | P6.25 / P6.25 | P10 / P10 |
| Visual Transparency Rate | 70% | 80% | 90% | 92% |
| Physical Transparency Rate | 35% | 50% | 65% | 70% |
| Pixel Density (dot / m²) | 160,000 | 65,536 | 25,600 | 10,000 |
| Module Size with pixels (mm) (W*H) | 125×1000/125×1175 | 250×1000/250×1175/250×1468 | 250×1175/250×1475 | 250×1175/250×1475 |
| Module Size with Edge (mm) (W*H) | 250×1025 / 250×1200 | 250×1025/250×1200/250×1500 | 250×1200/250×1500 | 250×1200/250×1500 |
| Module Resolution (dot) (W*H) | 50×400 / 50×470 | 64×256 / 64×300/ 64×376 | 40×188 / 40×236 | 25×116 / 25×146 |
| Maximum Screen Height (m) | 2 | 3 | 3 | 3 |
| Brightness (cd/m²) | 1,500 – 1,800 | 2,200 – 4,000 | 4,500 – 5,000 | 4,000 – 4,500 |
| Weight (kg/㎡) | 6.5 | 6 | 6 | 6 |
| Encapsulation Type | LED & IC packed in one | |||
| Scanning Mode | Static Driving (Single Pixel Single Control) | |||
| Lifespan | ≥ 100,000.00 hours | |||
| Gray Scale | 65,536 (16bit) | |||
| Maximum Power Consumption (w / m²) | 1000 | |||
| Average Power Consumption (w / m²) | 300 | |||
| Control System | Novastar/Colorlight | |||
| Control Way | Synchronous / Asynchronous | |||
| Input Voltage | AC100~240V 50/60 Hz | |||
| Module Working Current | DC 4.2V ± 0.2V | |||
| Operation Temperature | 0~50℃ | |||
| Operation Humidity | 20%RH ~ 85%RH | |||
| Storage Temperature | -20~60℃ | |||
| Storage Humidity | 10%RH ~ 85%RH | |||
| Certificate | CE, EMC, LVD, CCC | |||
| Note: Specifications are for reference only and are subjected to change without notice. | ||||
