Description

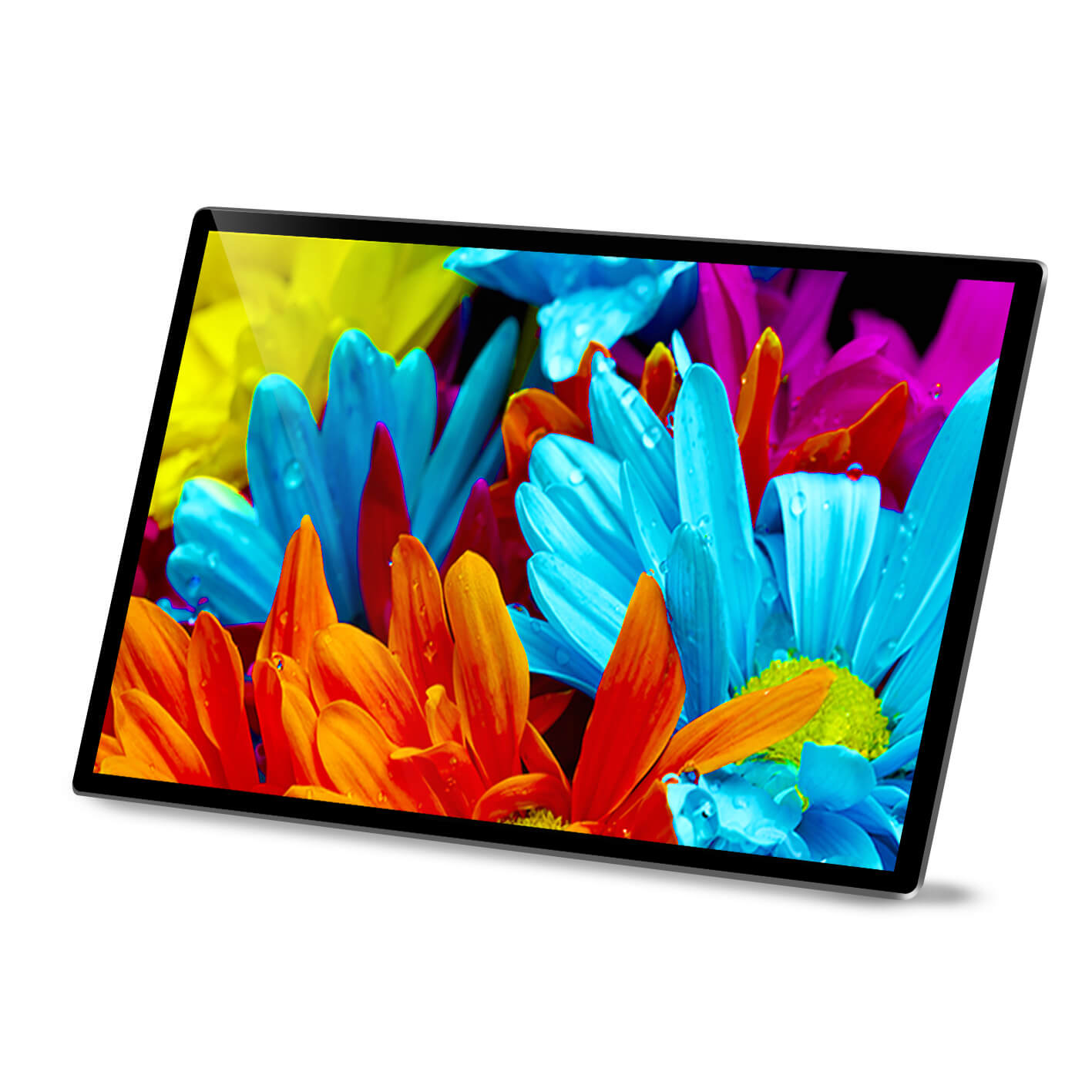

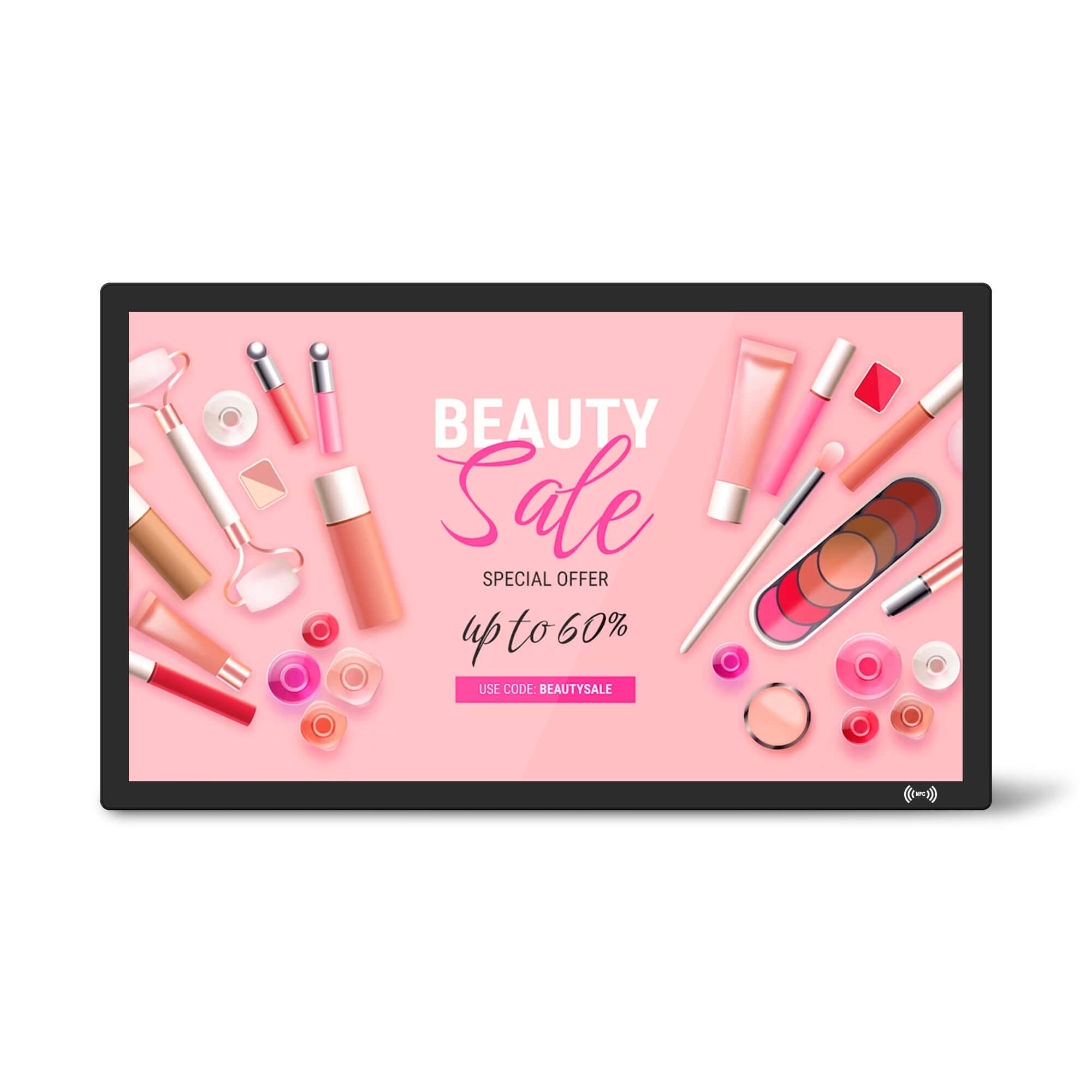

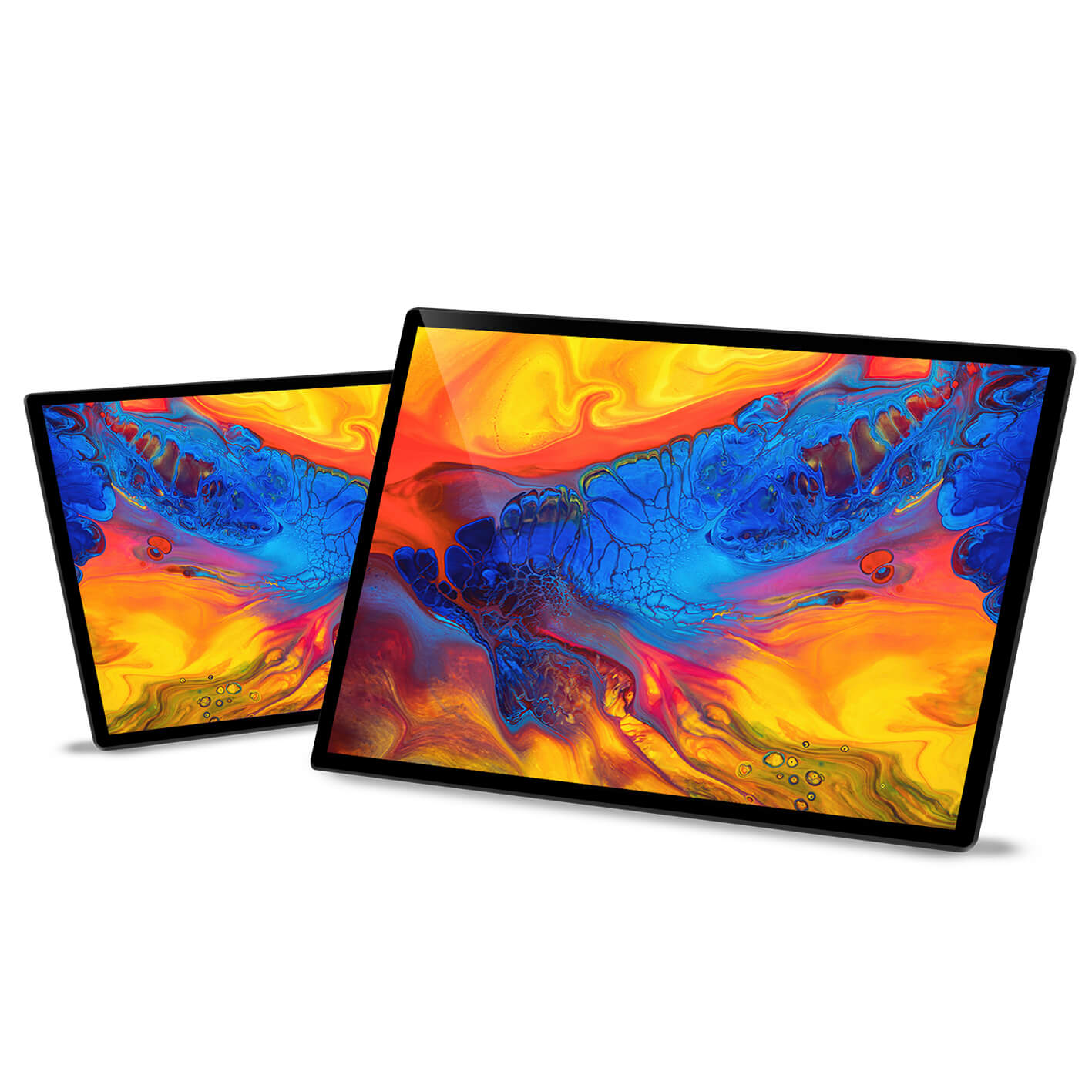

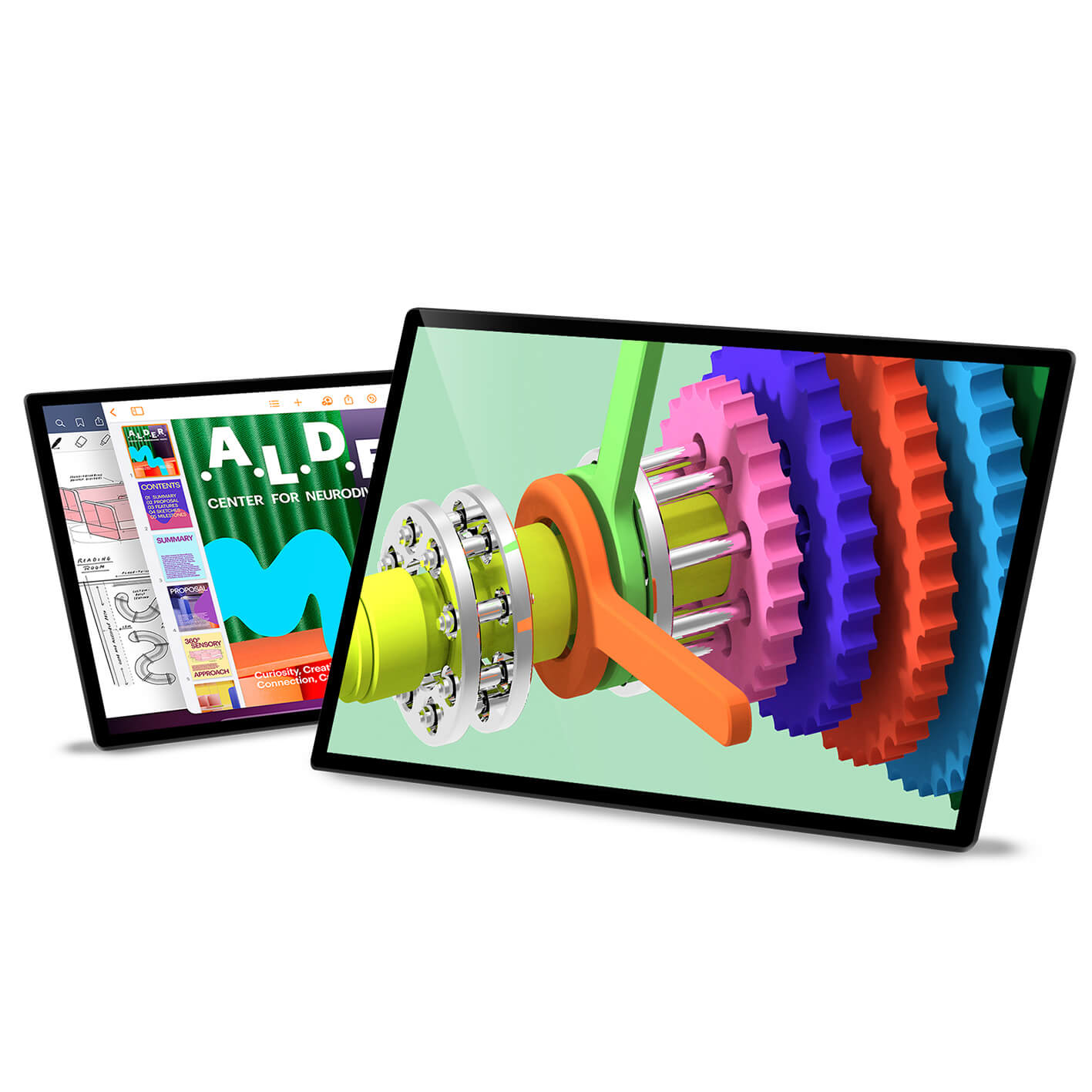

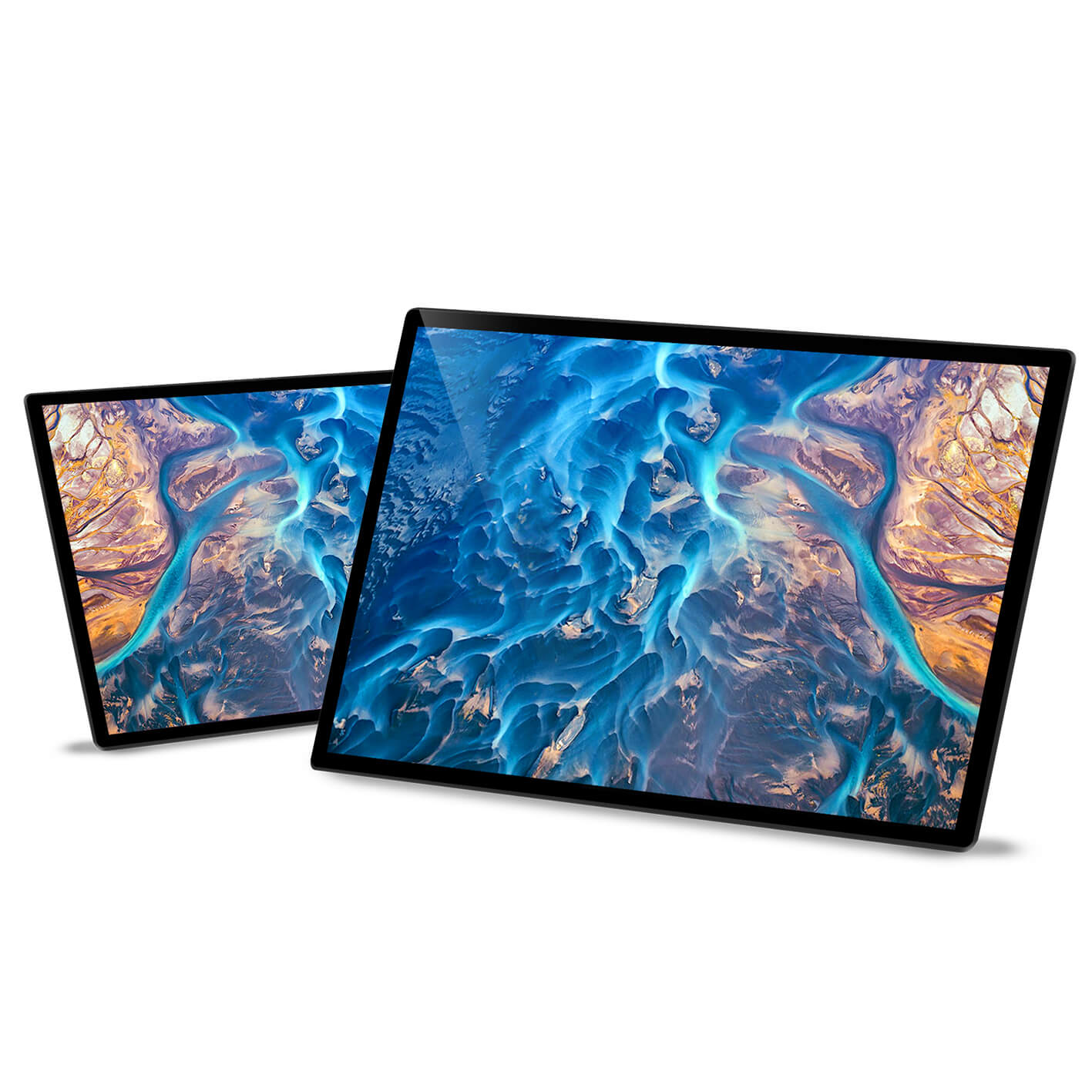

15.6” IPS Panel, Light Weight 1kg / Ultra Thin 8.5mm / Ultra Narrow Quadrilateral Boarder 10mm / WiFi / Ethernet / POE /Battery /HDMI-OUT / NFC,etc.
Specification:
| System | CPU | Quad core 1.8GHz (commercial high level) | |||
| RAM | 2GB (optional 4GB/8GB) | ||||
| Internal memory | 32GB (Optional 64GB/128GB) | ||||
| GPU | ARM Mali-G52 2EE, OpenGL ES 1.1/2.0/3.2, Vulkan 1.1; OpenCL 2.0;Embedded 2D accelerator | ||||
| NPU | 1TOPS, support int8/int16 | ||||
| System Management | Support OTA, USB flash drive reflash, SD card reflash | ||||
| Operation System | Android 11.0 | ||||
| Touch Panel | Include PCAP multi-touch(commercial high level) | ||||

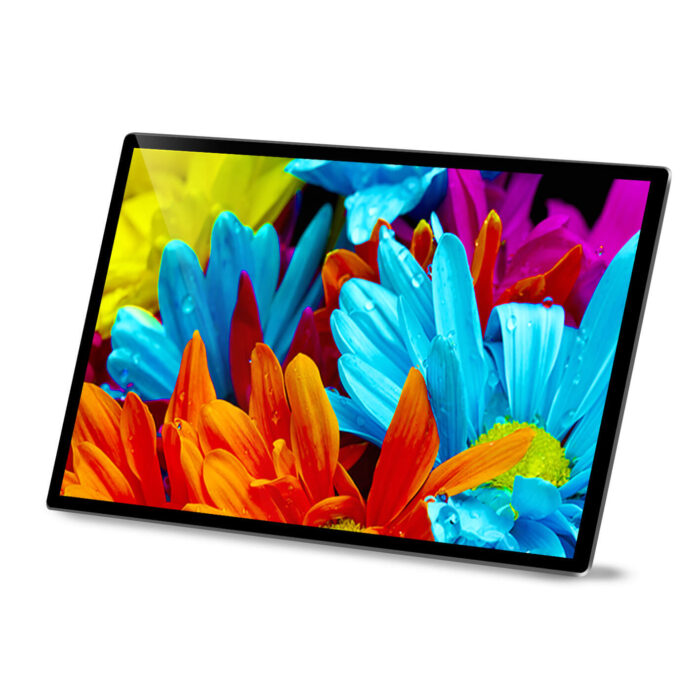

| Display screen: | Panel | 15.6″ IPS FHD screen (full view angle 178/178 degrees) | |||
| Resolution | 1920*1080 | ||||
| Contrast ratio | 800:1 | ||||
| Luminance | 250nits (optional 300/500nits) | ||||
| Aspect Ratio | 16:9 | ||||
| Network | WiFi | 802.11b/g/n | |||
| 3G/4G SIM module | Without, optional 4G and 3G | ||||
| Ethernet | 100M/1000M Ethernet | ||||
| Buletooth | Yes | ||||

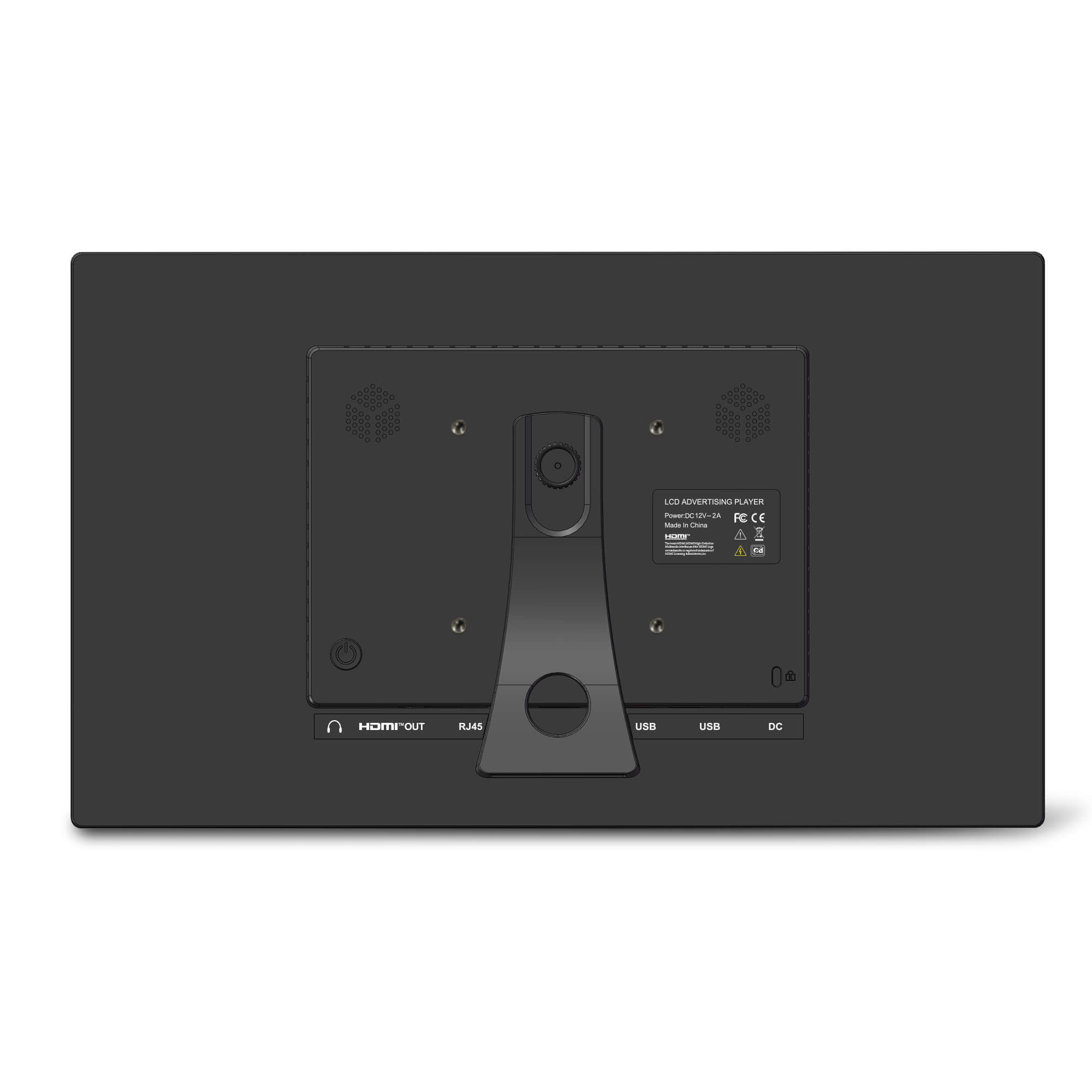

| Interfaces | MicroSD Card slot | yes | |||
| HDMI | yes, with HDMI-OUT (include HDMI license) | ||||
| DC port | DC port for 12V 2A | ||||
| USB port | yes, 2 USB (1xUSB 2.0, 1xUSB 3.0) | ||||
| Earphone | 3.5mm earphone | ||||
| Uboot hole | yes | ||||
| RJ45 | yes | ||||
| On/Off switch | yes | ||||
| Media plays | Video format | MPEG1/MPEG2/MPEG4, .mpg,.avi, format,Support Full H.264 | |||
| Audio format | MP3/WMA/AAC etc. | ||||
| Photo | jpeg | ||||
| Material | housing material | New Ultra-Thin(8.5mm), narrow boarder(10mm) and Light Weight ABS housing | |||
| Others (optionals) |
mouse | Supported by USB port | |||
| keyboard | Supported by USB port | ||||
| Speaker | 2*2W | ||||
| Language | Multi-language(English, French, German, Italian, etc) | ||||
| CMS cloud software | without, optional add $25/license(one time charge, free all using life) | ||||
| Application | Skype/Facebook/Twitter/Youtube/E-mail/google map etc | ||||
| Accessories: | Adapter | Adapter,DC 12V2A | |||
| Packing box with foam | yes | ||||

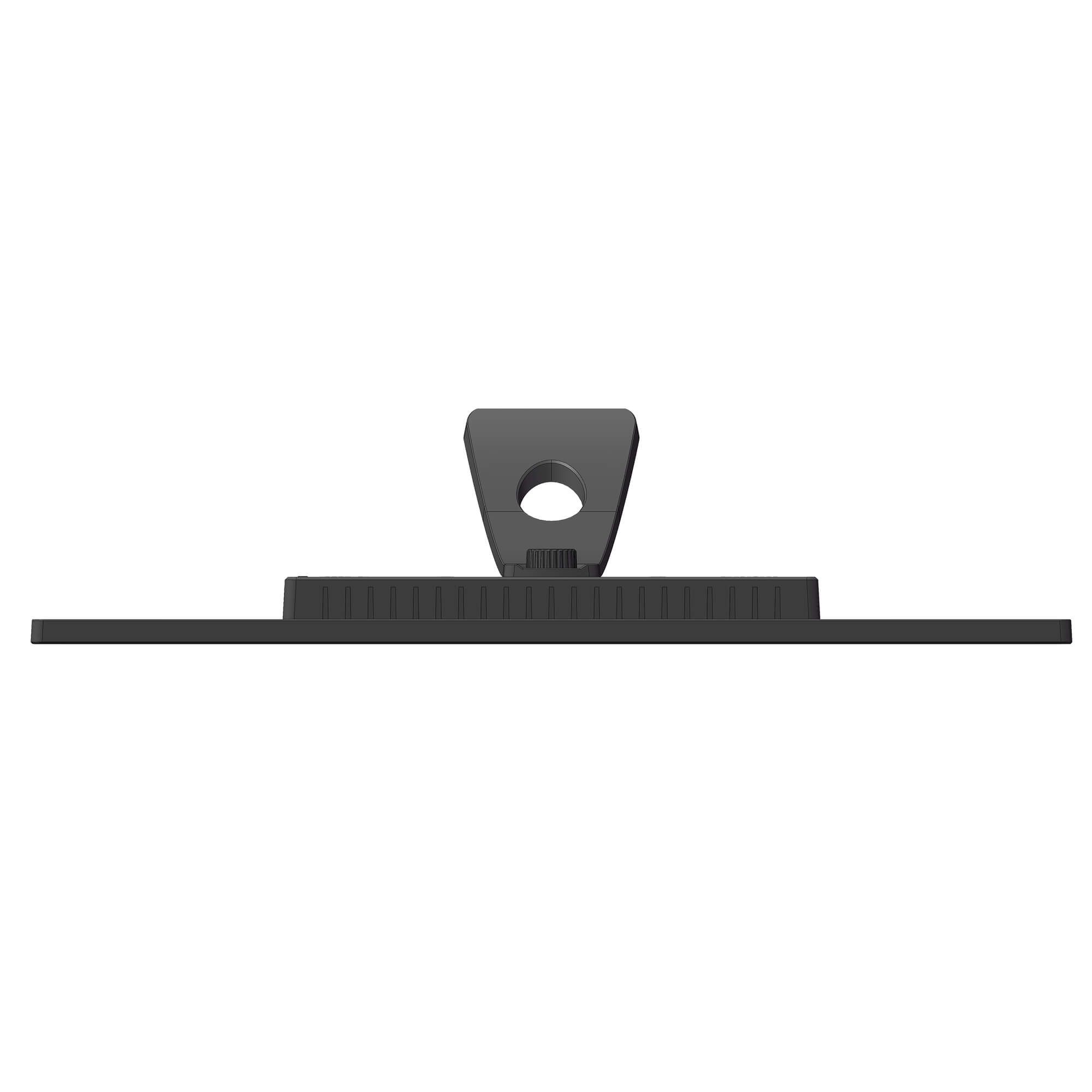

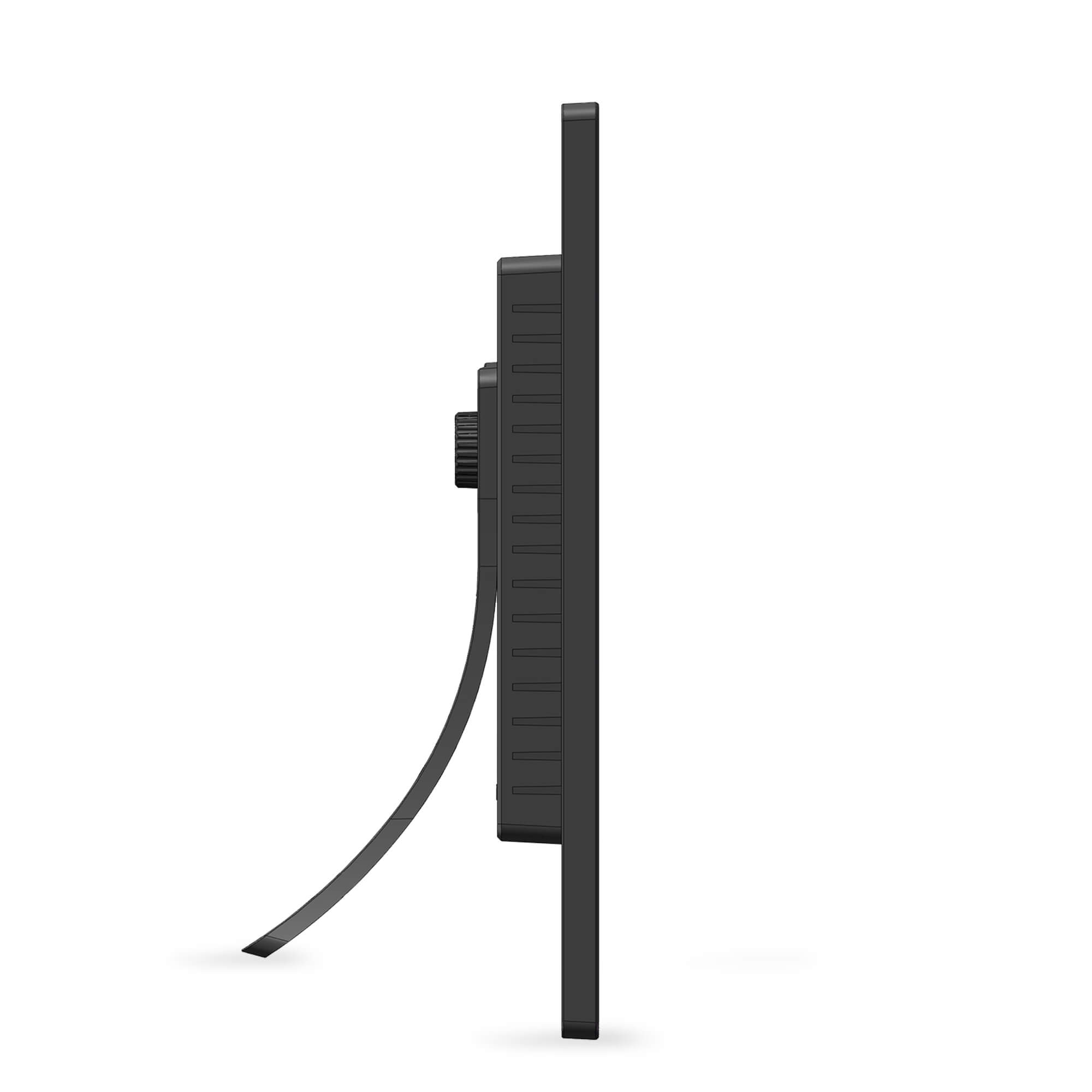

| Table stand | yes, with horizontal stand included | ||||
