  • Light weight and slim LED Film, only 6kg/sqm, and 1.8mm thickness
  • High transparency rate up to 90%
  • High brightness for day and night operation
  • Creative holographic LED display solution
  • Available for both fixed installation and exhibition rental
    • ]]>     3D Led Flexible Led Transparent Film Display Screen Transparent Led Video Wall For Glass Window Advertising

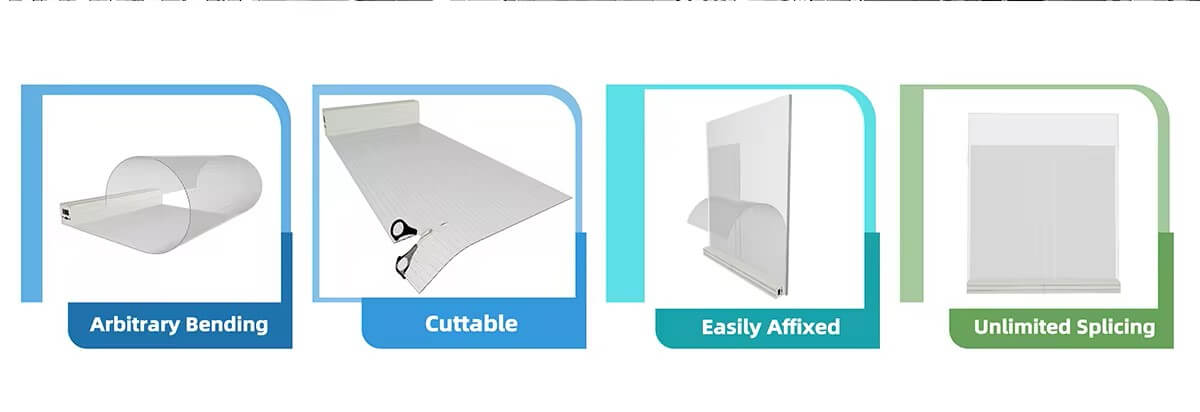

    It breaks the traditional transparent screen standard frame concept, the product is more flexible, can be directly pasted on the inside of the glass, with the size of the glass arbitrary cut, do not destroy the original structure of the building, does not affect the indoor lighting.
    Pixel spacing
    4-8mm
    Permeability
    90%
    SMD
    FMD2121
    Density(dot/m²）
    31250dot/㎡
    Unit size
    can be customized
    BBrightness
    ≥3000cd/㎡
    Optimal viewing distance
    4-100m
    Horizontal viewing angle
    ≥130°
    Vertical viewing angle
    ≥110°

    Technical-Parameters:

    Model FL-TLED-2.5 FL-TLED-3.9 FL-TLED-6.25 FL-TLED10
    Pixel Pitch (mm) (H/V) P2.5 / P2.5 P3.91 / P3.91 P6.25 / P6.25 P10 / P10
    Visual Transparency Rate 70% 80% 90% 92%
    Physical Transparency Rate 35% 50% 65% 70%
    Pixel Density (dot / m²) 160,000 65,536 25,600 10,000
    Module Size with pixels (mm) (W*H) 125×1000/125×1175 250×1000/250×1175/250×1468 250×1175/250×1475 250×1175/250×1475
    Module Size with Edge (mm) (W*H) 250×1025 / 250×1200 250×1025/250×1200/250×1500 250×1200/250×1500 250×1200/250×1500
    Module Resolution (dot) (W*H) 50×400 / 50×470 64×256 / 64×300/ 64×376 40×188 / 40×236 25×116 / 25×146
    Maximum Screen Height (m) 2 3 3 3
    Brightness (cd/m²) 1,500 – 1,800 2,200 – 4,000 4,500 – 5,000 4,000 – 4,500
    Weight (kg/㎡) 6.5 6 6 6
    Encapsulation Type LED & IC packed in one
    Scanning Mode Static Driving (Single Pixel Single Control)
    Lifespan ≥ 100,000.00 hours
    Gray Scale 65,536 (16bit)
    Maximum Power Consumption (w / m²) 1000
    Average Power Consumption (w / m²) 300
    Control System Novastar/Colorlight
    Control Way Synchronous / Asynchronous
    Input Voltage AC100~240V 50/60 Hz
    Module Working Current DC 4.2V ± 0.2V
    Operation Temperature 0~50℃
    Operation Humidity 20%RH ~ 85%RH
    Storage Temperature -20~60℃
    Storage Humidity 10%RH ~ 85%RH
    Certificate CE, EMC, LVD, CCC
    Note: Specifications are for reference only and are subjected to change without notice.

    Advantages of Products

    ]]>
